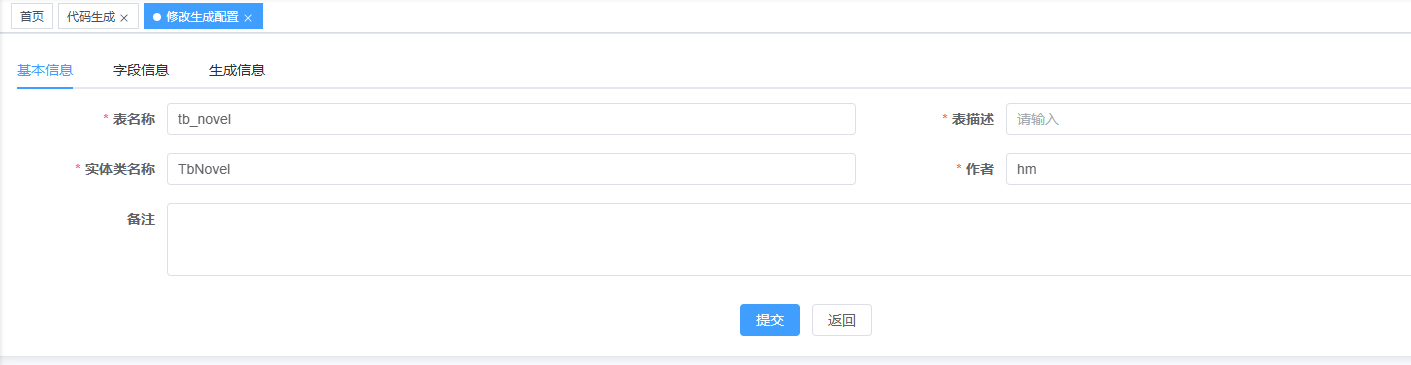

1、代码生成器

1.1、个性化配置

1.1.1、代码生成器的默认值

修改配置文件dkd-generator/src/main/resources/generator.yml

# 代码生成
gen:
  # 作者
  author: hm
  # 默认生成包路径 system 需改成自己的模块名称 如 system monitor tool
  packageName: com.dkd.manage
  # 自动去除表前缀，默认是false
  autoRemovePre: true
  # 表前缀（生成类名不会包含表前缀，多个用逗号分隔）
  tablePrefix: tb_

1.1.2、生成器优化

1.1.2.1、实体类改为lombok

注意的是确保common里引入了lombok的依赖

修改前：

package ${packageName}.domain;

#foreach ($import in $importList)
import ${import};
#end
import org.apache.commons.lang3.builder.ToStringBuilder;
import org.apache.commons.lang3.builder.ToStringStyle;
import com.dkd.common.annotation.Excel;
#if($table.crud || $table.sub)
import com.dkd.common.core.domain.BaseEntity;
#elseif($table.tree)
import com.dkd.common.core.domain.TreeEntity;
#end

/**
 * ${functionName}对象 ${tableName}
 *
 * @author ${author}
 * @date ${datetime}
 */
#if($table.crud || $table.sub)
#set($Entity="BaseEntity")
#elseif($table.tree)
#set($Entity="TreeEntity")
#end
public class ${ClassName} extends ${Entity}
{
    private static final long serialVersionUID = 1L;

#foreach ($column in $columns)
#if(!$table.isSuperColumn($column.javaField))
    /** $column.columnComment */
#if($column.list)
#set($parentheseIndex=$column.columnComment.indexOf("（"))
#if($parentheseIndex != -1)
#set($comment=$column.columnComment.substring(0, $parentheseIndex))
#else
#set($comment=$column.columnComment)
#end
#if($parentheseIndex != -1)
    @Excel(name = "${comment}", readConverterExp = "$column.readConverterExp()")
#elseif($column.javaType == 'Date')
    @JsonFormat(pattern = "yyyy-MM-dd")
    @Excel(name = "${comment}", width = 30, dateFormat = "yyyy-MM-dd")
#else
    @Excel(name = "${comment}")
#end
#end
    private $column.javaType $column.javaField;

#end
#end
#if($table.sub)
    /** $table.subTable.functionName信息 */
    private List<${subClassName}> ${subclassName}List;

#end
#foreach ($column in $columns)
#if(!$table.isSuperColumn($column.javaField))
#if($column.javaField.length() > 2 && $column.javaField.substring(1,2).matches("[A-Z]"))
#set($AttrName=$column.javaField)
#else
#set($AttrName=$column.javaField.substring(0,1).toUpperCase() + ${column.javaField.substring(1)})
#end
    public void set${AttrName}($column.javaType $column.javaField)
    {
        this.$column.javaField = $column.javaField;
    }

    public $column.javaType get${AttrName}()
    {
        return $column.javaField;
    }
#end
#end

#if($table.sub)
    public List<${subClassName}> get${subClassName}List()
    {
        return ${subclassName}List;
    }

    public void set${subClassName}List(List<${subClassName}> ${subclassName}List)
    {
        this.${subclassName}List = ${subclassName}List;
    }

#end
    @Override
    public String toString() {
        return new ToStringBuilder(this,ToStringStyle.MULTI_LINE_STYLE)
#foreach ($column in $columns)
#if($column.javaField.length() > 2 && $column.javaField.substring(1,2).matches("[A-Z]"))
#set($AttrName=$column.javaField)
#else
#set($AttrName=$column.javaField.substring(0,1).toUpperCase() + ${column.javaField.substring(1)})
#end
            .append("${column.javaField}", get${AttrName}())
#end
#if($table.sub)
            .append("${subclassName}List", get${subClassName}List())
#end
            .toString();
    }
}

需要修改的是继承lombok注解

package ${packageName}.domain;

#foreach ($import in $importList)
import ${import};
#end


import com.dkd.common.annotation.Excel;
#if($table.crud || $table.sub)
import com.dkd.common.core.domain.BaseEntity;
#elseif($table.tree)
import com.dkd.common.core.domain.TreeEntity;
#end
## lombok的相关依赖
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * ${functionName}对象 ${tableName}
 *
 * @author ${author}
 * @date ${datetime}
 */
#if($table.crud || $table.sub)
#set($Entity="BaseEntity")
#elseif($table.tree)
#set($Entity="TreeEntity")
#end
@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class ${ClassName} extends ${Entity}
{
    private static final long serialVersionUID = 1L;

#foreach ($column in $columns)
#if(!$table.isSuperColumn($column.javaField))
    /** $column.columnComment */
#if($column.list)
#set($parentheseIndex=$column.columnComment.indexOf("（"))
#if($parentheseIndex != -1)
#set($comment=$column.columnComment.substring(0, $parentheseIndex))
#else
#set($comment=$column.columnComment)
#end
#if($parentheseIndex != -1)
    @Excel(name = "${comment}", readConverterExp = "$column.readConverterExp()")
#elseif($column.javaType == 'Date')
    @JsonFormat(pattern = "yyyy-MM-dd")
    @Excel(name = "${comment}", width = 30, dateFormat = "yyyy-MM-dd")
#else
    @Excel(name = "${comment}")
#end
#end
    private $column.javaType $column.javaField;

#end
#end
#if($table.sub)
    /** $table.subTable.functionName信息 */
    private List<${subClassName}> ${subclassName}List;

#end
}

1.1.2.2、controller增加api相关swagger

package ${packageName}.controller;

import java.util.List;
import javax.servlet.http.HttpServletResponse;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import com.dkd.common.annotation.Log;
import com.dkd.common.core.controller.BaseController;
import com.dkd.common.core.domain.AjaxResult;
import com.dkd.common.enums.BusinessType;
import ${packageName}.domain.${ClassName};
import ${packageName}.service.I${ClassName}Service;
import com.dkd.common.utils.poi.ExcelUtil;
#if($table.crud || $table.sub)
import com.dkd.common.core.page.TableDataInfo;
#elseif($table.tree)
#end
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;

/**
 * ${functionName}Controller
 *
 * @author ${author}
 * @date ${datetime}
 */
@Api(tags = "${functionName}Controller")
@RestController
@RequestMapping("/${moduleName}/${businessName}")
public class ${ClassName}Controller extends BaseController
{
    @Autowired
    private I${ClassName}Service ${className}Service;

    /**
     * 查询${functionName}列表
     */
    @ApiOperation("查询${functionName}列表")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:list')")
    @GetMapping("/list")
#if($table.crud || $table.sub)
    public TableDataInfo list(${ClassName} ${className})
    {
        startPage();
        List<${ClassName}> list = ${className}Service.select${ClassName}List(${className});
        return getDataTable(list);
    }
#elseif($table.tree)
    public AjaxResult list(${ClassName} ${className})
    {
        List<${ClassName}> list = ${className}Service.select${ClassName}List(${className});
        return success(list);
    }
#end

    /**
     * 导出${functionName}列表
     */
    @ApiOperation("导出${functionName}列表")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:export')")
    @Log(title = "${functionName}", businessType = BusinessType.EXPORT)
    @PostMapping("/export")
    public void export(HttpServletResponse response, ${ClassName} ${className})
    {
        List<${ClassName}> list = ${className}Service.select${ClassName}List(${className});
        ExcelUtil<${ClassName}> util = new ExcelUtil<${ClassName}>(${ClassName}.class);
        util.exportExcel(response, list, "${functionName}数据");
    }

    /**
     * 获取${functionName}详细信息
     */
    @ApiOperation("获取${functionName}详细信息")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:query')")
    @GetMapping(value = "/{${pkColumn.javaField}}")
    public AjaxResult getInfo(@PathVariable("${pkColumn.javaField}") ${pkColumn.javaType} ${pkColumn.javaField})
    {
        return success(${className}Service.select${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaField}));
    }

    /**
     * 新增${functionName}
     */
    @ApiOperation("新增${functionName}")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:add')")
    @Log(title = "${functionName}", businessType = BusinessType.INSERT)
    @PostMapping
    public AjaxResult add(@RequestBody ${ClassName} ${className})
    {
        return toAjax(${className}Service.insert${ClassName}(${className}));
    }

    /**
     * 修改${functionName}
     */
    @ApiOperation("修改${functionName}")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:edit')")
    @Log(title = "${functionName}", businessType = BusinessType.UPDATE)
    @PutMapping
    public AjaxResult edit(@RequestBody ${ClassName} ${className})
    {
        return toAjax(${className}Service.update${ClassName}(${className}));
    }

    /**
     * 删除${functionName}
     */
    @ApiOperation("删除${functionName}")
    @PreAuthorize("@ss.hasPermi('${permissionPrefix}:remove')")
    @Log(title = "${functionName}", businessType = BusinessType.DELETE)
    @DeleteMapping("/{${pkColumn.javaField}s}")
    public AjaxResult remove(@PathVariable ${pkColumn.javaType}[] ${pkColumn.javaField}s)
    {
        return toAjax(${className}Service.delete${ClassName}By${pkColumn.capJavaField}s(${pkColumn.javaField}s));
    }
}

2、RBAC权限控制

什么是RBAC模型？

RBAC模型（Role-Based Access Control，基于角色的访问控制）是一种权限管理模型，通过角色作为中介，将用户与权限关联起来，从而简化系统资源的访问控制。其核心思想是：用户通过分配角色来间接获得权限，而非直接赋予用户权限。

例子：dkd-framework/src/main/java/com/dkd/framework/config/SecurityConfig.java

package com.dkd.framework.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.annotation.web.configurers.ExpressionUrlAuthorizationConfigurer;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.authentication.logout.LogoutFilter;
import org.springframework.web.filter.CorsFilter;
import com.dkd.framework.config.properties.PermitAllUrlProperties;
import com.dkd.framework.security.filter.JwtAuthenticationTokenFilter;
import com.dkd.framework.security.handle.AuthenticationEntryPointImpl;
import com.dkd.framework.security.handle.LogoutSuccessHandlerImpl;

/**
 * spring security配置
 *
 * @author ruoyi
 */
//开启方法级别的权限控制 @PreAuthorize("@ss.hasPermi('admin')")
@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter
{
    /**
     * 自定义用户认证逻辑
     */
    @Autowired
    private UserDetailsService userDetailsService;

    /**
     * 认证失败处理类
     */
    @Autowired
    private AuthenticationEntryPointImpl unauthorizedHandler;

    /**
     * 退出处理类
     */
    @Autowired
    private LogoutSuccessHandlerImpl logoutSuccessHandler;

    /**
     * token认证过滤器
     */
    @Autowired
    private JwtAuthenticationTokenFilter authenticationTokenFilter;

    /**
     * 跨域过滤器
     */
    @Autowired
    private CorsFilter corsFilter;

    /**
     * 允许匿名访问的地址
     */
    @Autowired
    private PermitAllUrlProperties permitAllUrl;

    /**
     * 解决 无法直接注入 AuthenticationManager
     *
     * @return
     * @throws Exception
     */
    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception
    {
        return super.authenticationManagerBean();
    }

    /**
     * anyRequest          |   匹配所有请求路径
     * access              |   SpringEl表达式结果为true时可以访问
     * anonymous           |   匿名可以访问
     * denyAll             |   用户不能访问
     * fullyAuthenticated  |   用户完全认证可以访问（非remember-me下自动登录）
     * hasAnyAuthority     |   如果有参数，参数表示权限，则其中任何一个权限可以访问
     * hasAnyRole          |   如果有参数，参数表示角色，则其中任何一个角色可以访问
     * hasAuthority        |   如果有参数，参数表示权限，则其权限可以访问
     * hasIpAddress        |   如果有参数，参数表示IP地址，如果用户IP和参数匹配，则可以访问
     * hasRole             |   如果有参数，参数表示角色，则其角色可以访问
     * permitAll           |   用户可以任意访问
     * rememberMe          |   允许通过remember-me登录的用户访问
     * authenticated       |   用户登录后可访问
     */
    @Override
    protected void configure(HttpSecurity httpSecurity) throws Exception
    {
        // 注解标记允许匿名访问的url
        ExpressionUrlAuthorizationConfigurer<HttpSecurity>.ExpressionInterceptUrlRegistry registry = httpSecurity.authorizeRequests();
        permitAllUrl.getUrls().forEach(url -> registry.antMatchers(url).permitAll());

        httpSecurity
                // CSRF禁用，因为不使用session
                .csrf().disable()
                // 禁用HTTP响应标头
                .headers().cacheControl().disable().and()
                // 认证失败处理类
                .exceptionHandling().authenticationEntryPoint(unauthorizedHandler).and()
                // 基于token，所以不需要session
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).and()
                // 过滤请求
                .authorizeRequests()
                // 对于登录login 注册register 验证码captchaImage 允许匿名访问
                .antMatchers("/login", "/register", "/captchaImage").permitAll()
                // 静态资源，可匿名访问
                .antMatchers(HttpMethod.GET, "/", "/*.html", "/**/*.html", "/**/*.css", "/**/*.js", "/profile/**").permitAll()
                .antMatchers("/swagger-ui.html", "/swagger-resources/**", "/webjars/**", "/*/api-docs", "/druid/**").permitAll()
                // 除上面外的所有请求全部需要鉴权认证
                .anyRequest().authenticated()
                .and()
                .headers().frameOptions().disable();
        // 添加Logout filter
        httpSecurity.logout().logoutUrl("/logout").logoutSuccessHandler(logoutSuccessHandler);
        // 添加JWT filter
        httpSecurity.addFilterBefore(authenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);
        // 添加CORS filter
        httpSecurity.addFilterBefore(corsFilter, JwtAuthenticationTokenFilter.class);
        httpSecurity.addFilterBefore(corsFilter, LogoutFilter.class);
    }

    /**
     * 强散列哈希加密实现
     */
    @Bean
    public BCryptPasswordEncoder bCryptPasswordEncoder()
    {
        return new BCryptPasswordEncoder();
    }

    /**
     * 身份认证接口
     */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception
    {
        auth.userDetailsService(userDetailsService).passwordEncoder(bCryptPasswordEncoder());
    }
}

2.1、无权限登录

如何需要配置匿名登录，即不需要登陆信息也可以访问接口，可以在接口上添加注解：@Anonymous

        // 注解标记允许匿名访问的url
        ExpressionUrlAuthorizationConfigurer<HttpSecurity>.ExpressionInterceptUrlRegistry registry = httpSecurity.authorizeRequests();
        permitAllUrl.getUrls().forEach(url -> registry.antMatchers(url).permitAll());

这边就是把打了注解的请求放到集合里面。

2.2、登陆流程

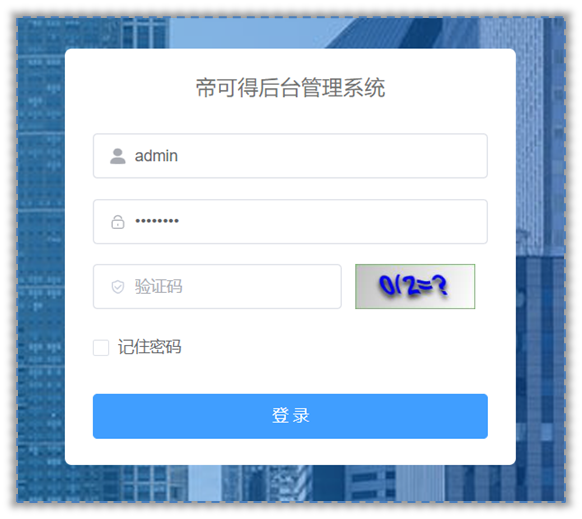

管理员在登录页面，输入用户名和密码以及验证码后，点击登录按钮，向后端发送请求，后端通过springSecurity认证管理器进行登录校验

此功能涉及前端相关的代码位于views/login.vue这个视图组件中，负责实现用户登录界面和交互逻辑。

后端处理逻辑则在dkd-admin模块的SysLoginController中，负责接收前端的请求，处理登录逻辑，并返回token令牌

前端

1. 点击login.vue中的登录按钮

2. 调用login.vue中的handleLogin方法

3. 调用store/mondles/user.js中的login方法，将返回结果存入useUserStore对象中（用于管理用户相关的状态和操作）

4. 调用api/login.js中的login方法

5. 调用utils/request.js中的service实例基于axios发送ajax请求（.env.development文件设置了统一请求路径前缀）

后端

SysLoginController

在ruoyi-admin模块中com.ruoyi.web.controller.system.SysLoginController类的login方法接收前端登录请求

SysLoginService

在ruoyi-framework模块中com.ruoyi.framework.web.service.SysLoginService类的login方法处理登录逻辑

1. 验证码校验

2. 登录前置校验

3. SS认证管理器用户校验，调用执行UserDetailsServiceImpl.loadUserByUsername

   1. 认证通过后，创建登录用户对象LoginUser包括用户ID、部门ID、用户信息和用户权限信息

4. 登录成功，记录日志

5. 修改用户表更新登录信息

6. 生成token

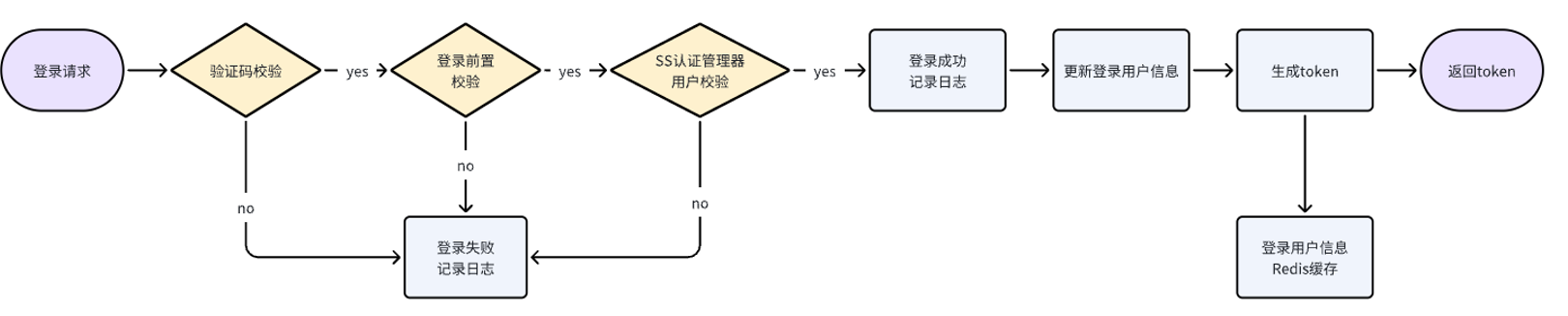

具体的执行的流程如下图：

获取用户角色和权限

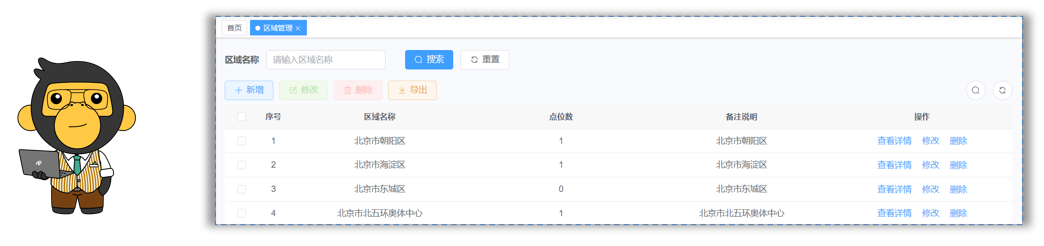

超级管理员登录帝可得系统后，可以查看区域管理所有的权限按钮，实现增删改查操作

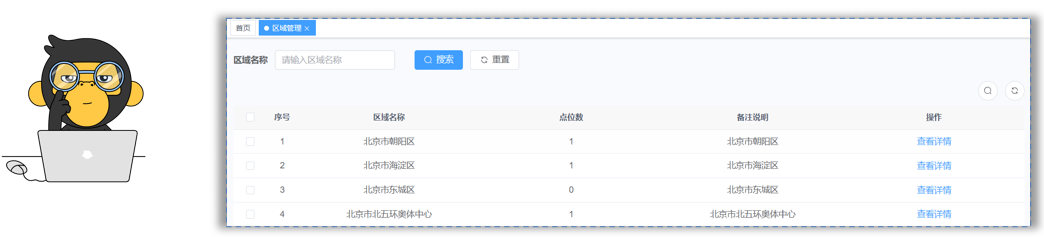

而财务人员登录帝可得系统后，仅可以查看区域列表，其他权限没有

1）首先创建一个财务人员的角色，权限字符串 Accountant，仅设置区域管理查询权限

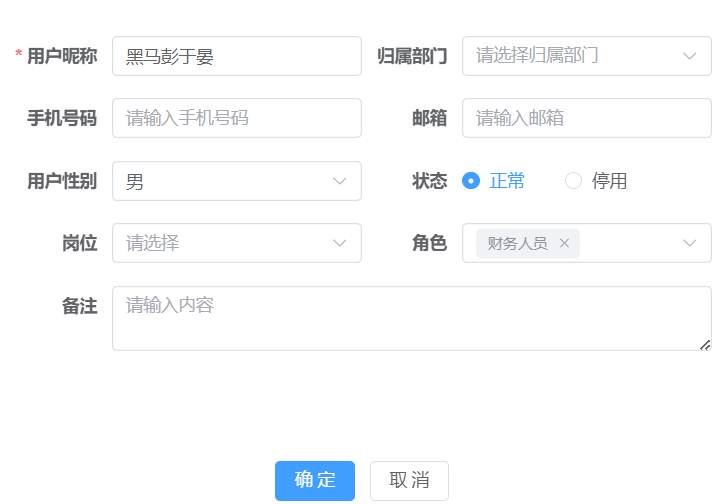

2）再创建一个用户，昵称为黑马彭于晏，用户名hmpyy，密码admin123 角色为财务人员

前端

1. 在全局permission.js中的router.beforeEach方法用于在用户导航到不同路由之前进行一些预处理

2. 调用store/mondles/user.js中的getInfo方法，将返回结果存入useUserStore对象中（用于管理用户相关的状态和操作）

3. 调用api/login.js中的getInfo方法

后端

SysLoginController

在ruoyi-admin模块中com.ruoyi.web.controller.system.SysLoginController类的getInfo方法接收前端获取用户信息请求

SysPermissionService

在ruoyi-framework模块中com.ruoyi.framework.web.service.SysPermissionService类

1. getRolePermission查询该用户角色集合

2. getMenuPermission查询该用户权限（菜单）集合

具体的执行的流程如下图：
